- Time welding mode
- Posit amplitude to protect the circuit
- Welding deep position device
- New digital anti-interference time control circuit
- 100mm strong machine body demonstrates the best machine structure
- 110mm height Large press with multiple functions

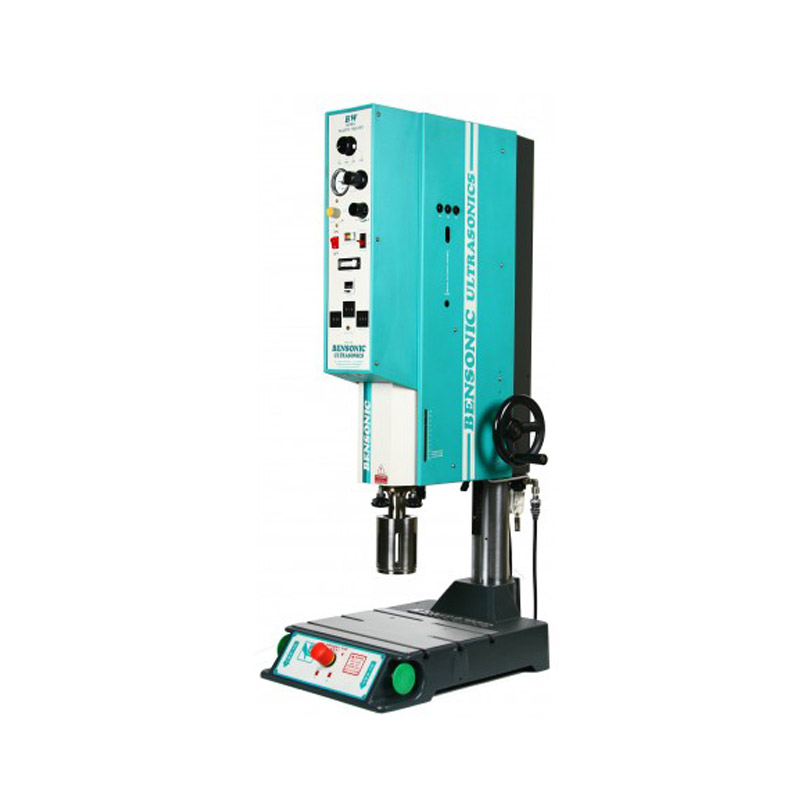

NBW Plastic Welding Machine
*Time welding mode *Posit amplitude to protect the circuit *Welding deep position device *N..
Block "product-contact" not found
Feature
1.Best Welded Product with Welding Depth Control mechanical and electric position off in the same time, Whole series equipped with “Position Off and Stopper Device” (Patent No. : PAT 66995) collocate precise scale button enables the depth precision of welded product each time within ±0.01mm.
2. Digital Time Control Circuit
New developed digital anti-interfere time control circuit solves the problem for being interfered by electric field.magnetic field and other electronic reasons and reaches better time control and the most safety performance.
3. Optimized Air Pressure Actuator System
German Bosch High speed electromagnetic valve cooperated with specially make cylinder and scale speed control valve, able to perfectly transmit the power in the working pressure range 0~6kg / cm2.
4. 100φmmStrong Mechanical Construction and Large Press with Multiple Functions
NBW series demonstrates a powerful and perfect design on machine construction.
Pillar of machine body is increased to 100mm, overcoming the problem of unstable welding caused by machine inclined backward.110mm height Big press with multiple functions such as T shapes lot and fast design to fix / change mold, make fixture mold adjustment faster and more convenient.
5. Whole series equipped with
Posit amplitude to protect the circuit, make the machine could collocate more power safely, if the power is over safety range, it also could be limited, special machine could add soft restart to protect the circuit.
Technical Information
Technical data | ||||||
Model | NBW-2015P | NBW-2025TI | NBW-2030P | NBW-1522P | NBW-1528P | NBW-1542P |
Ultrasonic freguency | 20KHz | 20KHz | 20KHz | 15KHz | 15KHz | 15KHz |
Ultrasonic power | 1500W | 2500W | 3000W | 2200W | 2800W | 4200W |
Supply voltage 50/60Hz | 220V/1P | 220V/1P | 220V/3P | 220V/1P | 220V/1P | 220V/3P |
Control votage | 24V | 24V | 24V | 24V | 24V | 24V |
Weight | 90KG | 90KG | 100KG | 90KG | 90KG | 100KG |
Dimension | 400mm X 650mm X 1100mm |
