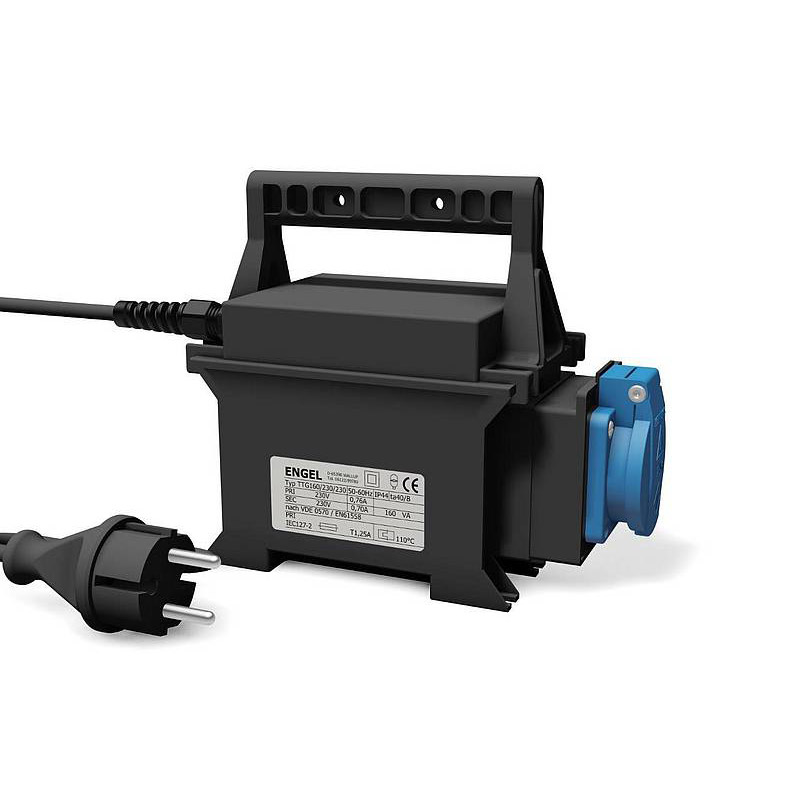

Universal usable single-Phase isolating transformer.
Encapsulated in plastic housing.
TECHNICAL DESCRIPTION
– According to VDE 0570 Part 1 and Part 2-4/6, EN 61558-1 and EN 61558-2-4/6
– Input voltage: 230 V – 50/60 Hz
– Output voltage:230 V – 50/60 Hz
– Safety class II
– Type of enclosure IP 44
– Isolating class ta40/B
– Primary Connection via 2 m twin-core mains cable with moulded-on contour-central-plug
– Secondary with grounding outlet (grounding not connected)
– Short circuit protection and thermal protection
TYPES
Typ TTG 100
Power: 100 VA
Weight: 1,90 kg
Dimensions (W x D x H): 93 x 171 x 155 mm
Typ TTG 160
Power: 160 VA
Weight: 2,80 kg
Dimensions (B x T x H): 93 x 171 x 155 mm
Typ TTG 250
Power: 250 VA
Weight: 3,60 kg
Dimensions (B x T x H): 93 x 171 x 155 mm
Typ TTG 320
Power: 320 VA
Weight: 6,60 kg
Dimensions (B x T x H): 159x 235 x 215 mm
Typ TTG 400
Power: 400 VA
Weight: 6,80 kg
Dimensions (B x T x H): 159x 235 x 215 mm
Typ TTG 500
Power: 500 VA
Weight: 7,80 kg
Dimensions (B x T x H): 159x 235 x 215 mm
