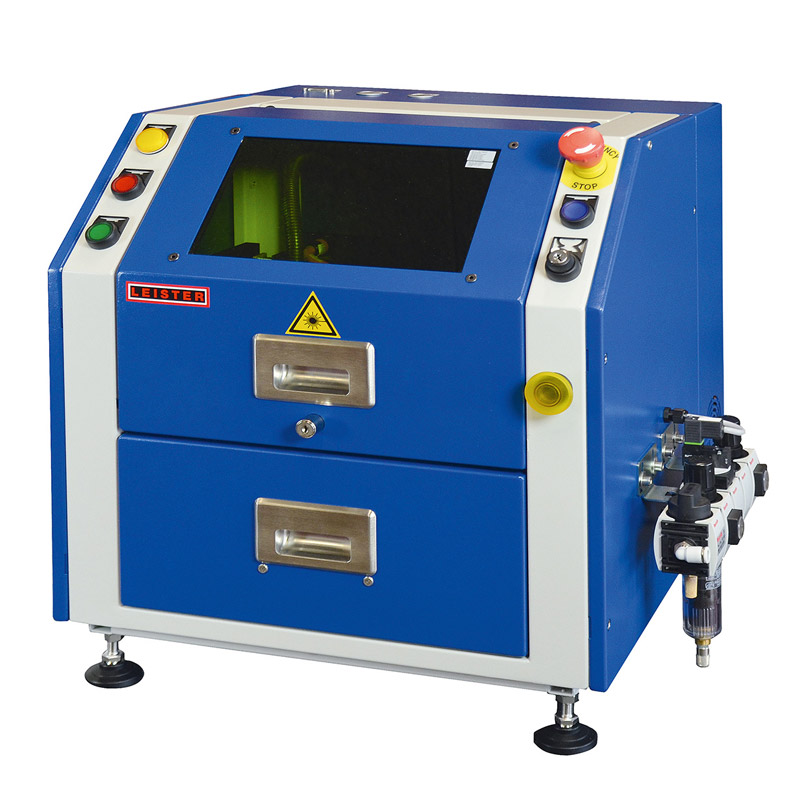

The NOVOLAS TTS is an all-in-one integrated system for laser welding of plastics. The laser unit and the processing cell are separated from each other and can be set up in a space optimized manner at the production site. Despite the small processing cell the operation or welding plane has dimensions of 100 x 100 mm.
The NOVOLAS TTS is controlled by a Mini PLC and programmed by a Leister developed HMI (Human Machine Interface) Software. The HMI handles transfer of process relevant parameters to the system and storage within a project structure. The welding contour is programmed in a CNC-code while other parameters such as laser power and welding speed can easily be set within the HMI.
Once implemented, the system runs autonomously. Input components like mouse and keyboard can be removed from the system in production. If necessary external access is possible via remote desktop.
- Swiss made
- Compact and efficient laser welding system
- Economical solution for production
- Flexible application range focused on production
- Comprehensive and intuitive HMI
- Laser safety class 1 compliant
