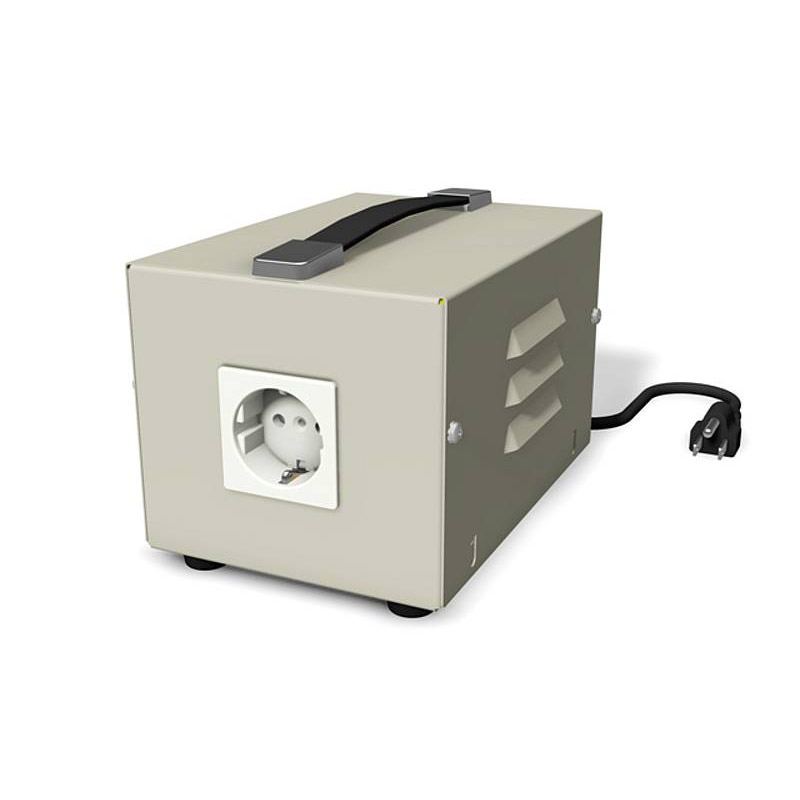

Auto-Transformers, mounted in steel-cases with a handgrip.
For matching and operating of 230V-units at the 110 … 120V line voltage.
An auto-transformer has only one winding with a tapping, there is no insulation from mains.
For protection against short-circuit and overload a changeable fuse is incorporated.
The input has a 1.8m Power Cord with a mounted US-plug.
The output has a Schuko-socket.
– Execution in accordance to VDE 0570 / EN61558
– Non-inherently short-ciruit
– Protective class I
– Protective type IP 21
– Thermal class E
– Nominal ambient temperature ta 40°C
– Input voltage: AC 120 V
– Frequency: 50/60 Hz
– Output voltage: AC 230
Type VSTG 25/120/230
Power: 250 VA
Weight: 3,40 kg

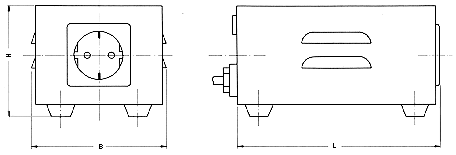

Measure (B x L x H): 120 x 185 x 110 mm
Schuko-socket: 1x
Power Cord US-Norm – V/A: 125VAC/10A
Power Cord US-Norm – US-plug:NEMA 5-15P
Type VSTG 35/120/230
Power: 350 VA
Weight: 4,00 kg
Measure (B x L x H): 120 x 185 x 110 mm
Schuko-socket: 1x
Power Cord US-Norm – V/A: 125VAC/10A
Power Cord US-Norm – US-plug:NEMA 5-15P
Type VSTG 50/120/230
Power: 500 VA
Weight: 5,30 kg
Measure (B x L x H): 143 x 190 x 130 mm
Schuko-socket: 1x
Power Cord US-Norm – V/A: 125VAC/10A
Power Cord US-Norm – US-plug:NEMA 5-15P
Type VSTG 75/120/230
Power: 750 VA
Weight: 8,90 kg
Measure (B x L x H): 178 x 240 x 140mm
Schuko-socket: 1x
Power Cord US-Norm – V/A: 125VAC/10A
Power Cord US-Norm – US-plug:NEMA 5-15P
Type VSTG 100/120/230
Power: 1000 VA
Weight: 9,90 kg
Measure (B x L x H): 178 x 240 x 140mm
Schuko-socket: 1x
Power Cord US-Norm – V/A: 125VAC/10A
Power Cord US-Norm – US-plug:NEMA 5-15P
Type VSTG 150/120/230
Power: 1500 VA
Weight: 12,20 kg
Measure (B x L x H): 178 x 240 x 180mm
Schuko-socket: 1x
Power Cord US-Norm- V/A: 125VAC/15A
Power Cord US-Norm – US-plug:NEMA 5-15P
Type VSTG 200/120/230
Power: 2000 VA
Weight: 14,20 kg
Measure (B x L x H): 178 x 240 x 180mm
Schuko-socket: 1x
Power Cord US-Norm – V/A: 125VAC/20A
Power Cord US-Norm – US-plug:
