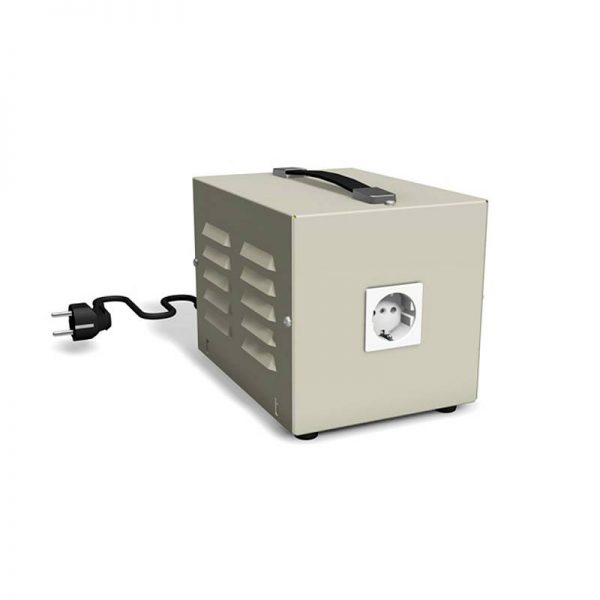

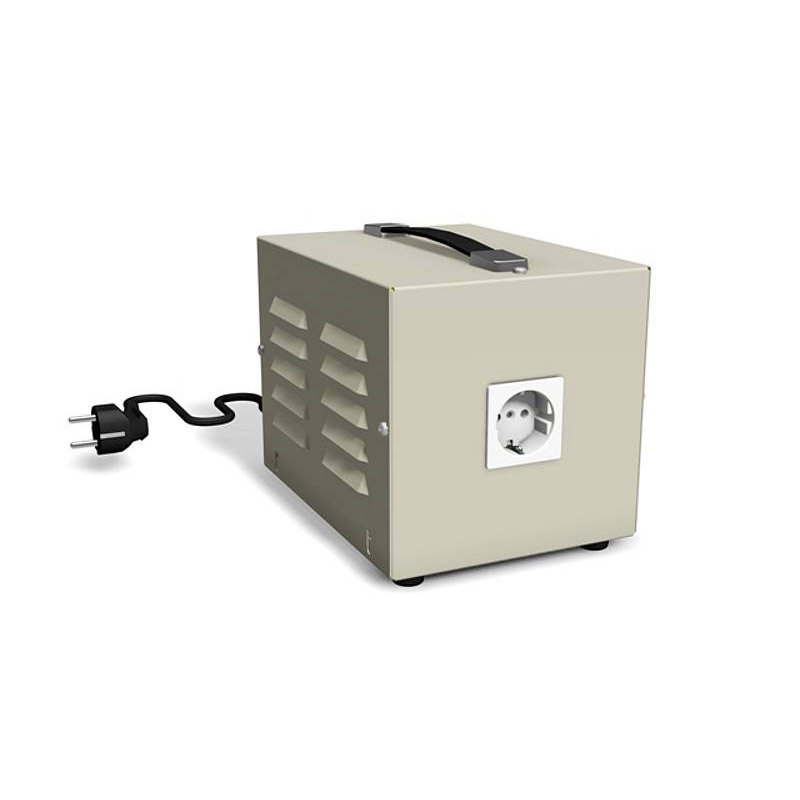

Auto-Transformers, mounted in steel-cases with a handgrip.
For matching and operating of 110…125V-units at the 230V line voltage and inverted.
An auto-transformer has only one winding with a tapping, there is no insulation from mains.
The input has a 2m mains lead with a mounted Schuko-plug. The output has a Schuko-socket.
– Protective class I
– Protective type IP 21
– Thermal class E
– Nominal ambient temperature ta 40°C
– Input voltage: AC 110V/ 125V/ 230V/ 250V
– Frequency: 50/60Hz
– Output voltage: AC 110V/ 125V/ 230V/ 250V
Type VTG 10
Power: 100 VA
Weight: 2,20 kg
Measure (B x L x H): 110 x 170x 90 mm
Schuko-socket: 1x
Type VTG 15
Power: 150 VA
Weight: 2,40 kg
Measure (B x L x H): 110 x 170x 90 mm
Schuko-socket: 1x
Type VTG 25
Power: 250 VA
Weight: 3,40 kg
Measure (B x L x H): 120 x 185 x 110 mm
Schuko-socket: 1x
Type VTG 35
Power: 350 VA
Weight: 4,00 kg
Measure (B x L x H): 120 x 185 x 110 mm
Schuko-socket: 1x
Type VTG 50
Power: 500 VA
Weight: 5,30 kg
Measure (B x L x H): 143 x 190 x 130 mm
Schuko-socket: 1x
Type VTG 75
Power: 750 VA
Weight: 8,90 kg
Measure (B x L x H): 178 x 240 x 140mm
Schuko-socket: 1x
Type VTG 100
Power: 1000 VA
Weight: 9,90 kg
Measure (B x L x H): 178 x 240 x 140mm
Schuko-socket: 1x
Type VTG 150
Power: 1500 VA
Weight: 12,20 kg
Measure (B x L x H): 178 x 240 x 180mm
Schuko-socket: 1x
Type VTG 200
Power: 2000 VA
Weight: 14,20 kg
Measure (B x L x H): 178 x 240 x 180mm
Schuko-socket: 1x
